Renovation essential: How to find a cable in the wall before drilling? Wall detectors and locators

• Classic wall detector (profile detector): It works contactlessly using magnetic induction or an electromagnetic wave sensor. You move it flat across the plaster, and it informs you that exactly in this place underneath there is an obstacle – e.g. an aluminum profile, wooden beam, or live cable. It is used to avoid hazards before drilling.
• Cable locator (wire pair finder): This is an advanced two-part set (transmitter + receiver). The transmitter sends a radio signal into a specific cable (even one completely disconnected from power), and you move the receiver along the wall, tracking the exact route of the cable centimeter by centimeter. It is used for mapping installations and locating faults.

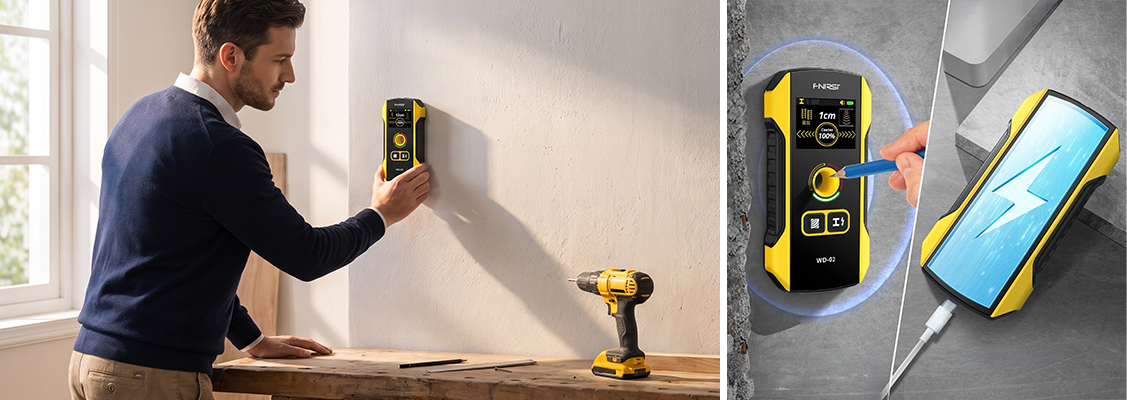

1. FNIRSI WD-02 – Modernity powered by USB-C

• What it detects: Steel reinforcement (up to 120 mm), copper pipes (up to 100 mm), wooden profiles (up to 38 mm), and live AC wires (up to 50 mm).
• Main advantage: A clear, color TFT HD screen that precisely shows the position of the center of the object, a marking hole, and an LED warning system (green, yellow, red).
• Who it is for: Ideal for modern DIY enthusiasts and professionals who need a handy tool with high accuracy, without having to remember spare batteries.

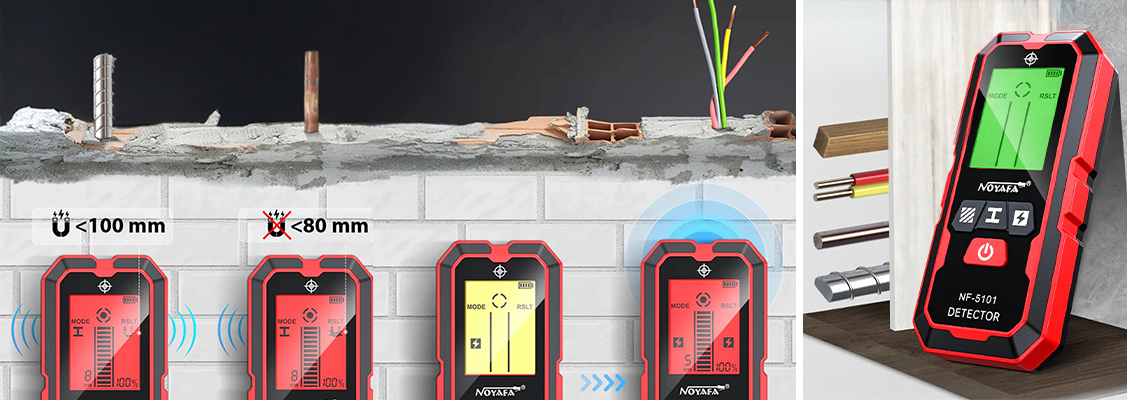

2. Noyafa NF-5101 – Precision and simplicity at a good price

• What it detects: Metal structures, wooden profiles, PVC, and electrical wires hidden in the wall.
• Main advantage: An exceptionally intuitive interface, high sensor sensitivity, and a 2.4-inch STN HD display with RGB backlighting and audio signals.
• Who it is for: The best choice for people looking for solid protection for occasional household tasks – mounting a TV, hanging cabinets, or curtain rods.

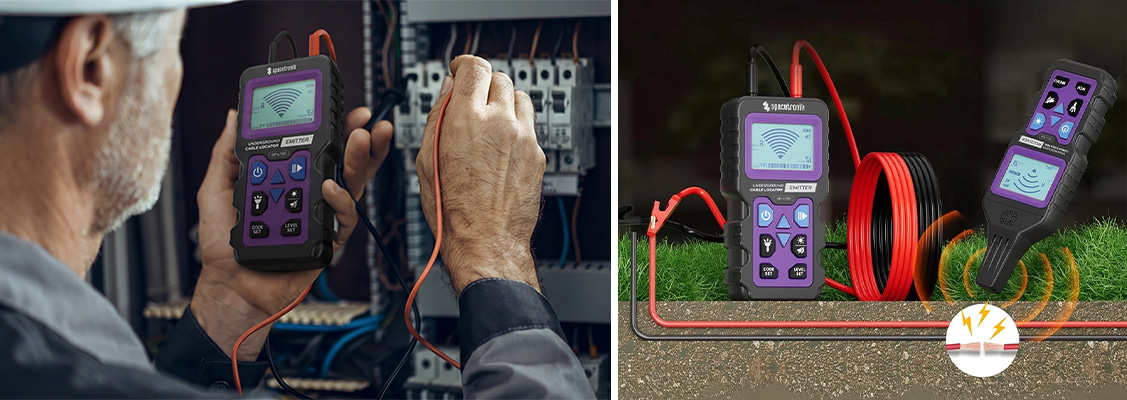

3. Spacetronik SP-LT09 – Professional locator and tracer

• Application and range: It allows precise tracking of the routes of cables and pipes hidden deep under plaster, in floors with underfloor heating, and even underground (signal range up to 1000 m, detection depth up to as much as 2 meters!).
• Main advantage: It locates exact places of breaks in circuits, short circuits, and makes it easier to identify specific cores in thick cable bundles. It has non-contact voltage detection (NCV) and a built-in AC/DC meter (12–400 V).
• Who it is for: Professional electricians, LAN network installers, alarm system installers, intercom installers, and plumbers.

1. Calibrate the device: Before you start searching, place the detector against the wall in a place where you are absolutely sure there is nothing underneath (away from sockets and switches). Turn on the device and let it adjust to the density and humidity of the given plaster.
2. Turn on power consumption: Most detectors locate electrical cables by their electromagnetic field. If the line supplies an empty socket, the field will be too weak. Trick: Connect a device with high power consumption to the tested circuit – e.g. an electric kettle, vacuum cleaner, or powerful lamp.
3. Use the cross method: Move the detector along the wall slowly, with a smooth motion. When the device signals the presence of metal or a cable, mark this spot with a pencil. Perform the same movement first from left to right, and then from top to bottom. The center of the intersection of these lines is the precise position of the obstacle.
4. Ensure the elimination of static charges: Remove rings, a watch, and metal bracelets from your hand – they can confuse sensitive sensors. To make the measurement stable, place your free hand flat against the wall a dozen or so centimeters from the detector. This will help discharge electrostatic charges from the surface of dry plaster.
