The most common mistakes made during oscilloscope measurements and how to avoid them.

2026-04-29

Oscilloscope: Your Key to Diagnostics – Learn the Most Common Mistakes and How to Avoid Them

The oscilloscope is an indispensable tool in the hands of every electronics engineer, installer, or service technician, enabling oscilloscope diagnostics and the visualization of electrical signals. Thanks to it, it is possible to detect interference, analyze waveforms, and verify the correct operation of electronic circuits. However, even the most advanced equipment is only as good as the skills of its operator. The most common oscilloscope measurement errors can effectively distort readings, leading to incorrect conclusions and wasted time.

In this article, we present a systematic approach to eliminating errors that will help you understand how to avoid mistakes when working with an oscilloscope and significantly improve the accuracy of your measurements. You will also see how modern digital oscilloscopes, such as the Spacetronik A3150, support safe and precise measurements thanks to intuitive operation and advanced features.

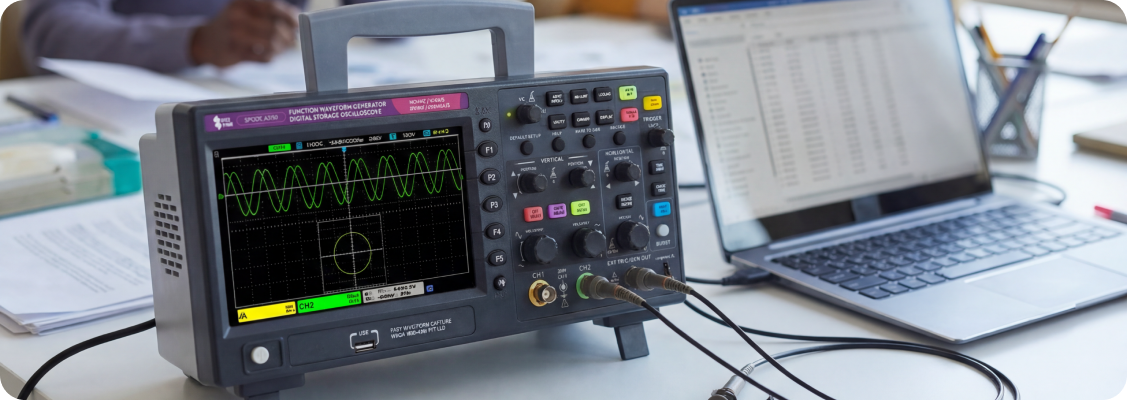

Digital oscilloscope during signal measurement waveform analysis and electronics diagnostics

Mistake 1: Incorrect Probe and Ground Connection – The Key to a Clean Signal

One of the most fundamental and at the same time most frequently made oscilloscope measurement errors is incorrect probe and ground connection. A probe ground lead that is too long acts like an antenna, collecting electromagnetic interference, which leads to noise and distortions. Creating ground loops additionally introduces parasitic voltages. Lack of proper grounding may also cause a safety hazard.

To avoid these problems, always shorten the ground lead, connect it directly to the reference point, and use professional measuring probes. Remember that in non-isolated oscilloscopes, incorrect ground connection may lead to short circuit or electric shock.

Shorten the ground lead – a long one acts like an antenna.
Connect GND directly to the reference point.
Avoid ground loops.
Ensure proper grounding of the entire system.
Use high-quality measuring probes.

IMPORTANT SAFETY WARNING!

Incorrect grounding may lead to electric shock and equipment damage. Always make sure that the measurement is performed under safe conditions.

Mistake 2: Incorrect sensitivity and time base settings

Incorrect V/Div and T/Div settings lead to incorrect signal interpretation. Too high sensitivity causes the signal to “run off” the screen, while too low sensitivity results in loss of detail. Likewise, an incorrect time base makes waveform analysis difficult.

Manual parameter adjustment is crucial – the signal should occupy about 70–80% of the screen, and 2–5 periods should be visible.

How to Set the Oscilloscope Precisely

Adjust V/Div and T/Div manually and set the trigger – this is the basis of a stable and readable signal image.

Mistake 3: Incorrect Probe Compensation – The Key to Precision

Lack of probe compensation leads to signal distortions (overshoot/undershoot). Every probe should be calibrated using a reference signal.

Connect the probe to the oscilloscope input and calibration signal.
Set the scale so that several periods are visible.
Observe the signal shape.
Adjust the probe trimmer.
Obtain a perfectly square waveform.

Mistake 4: Ignoring Bandwidth

The oscilloscope bandwidth should be 3–5 times greater than the signal frequency. Otherwise, the measurement will be distorted.

Interesting fact

BW × Tr ≈ 0.35 – greater bandwidth = more accurate reproduction of fast signals.

Mistake 5: Incorrect signal interpretation

Lack of context and circuit knowledge leads to incorrect conclusions. Always analyze the signal in relation to the schematic and documentation.

Analyze the schematic.
Compare with documentation.
Observe multiple signals at the same time.
Use mathematical functions.

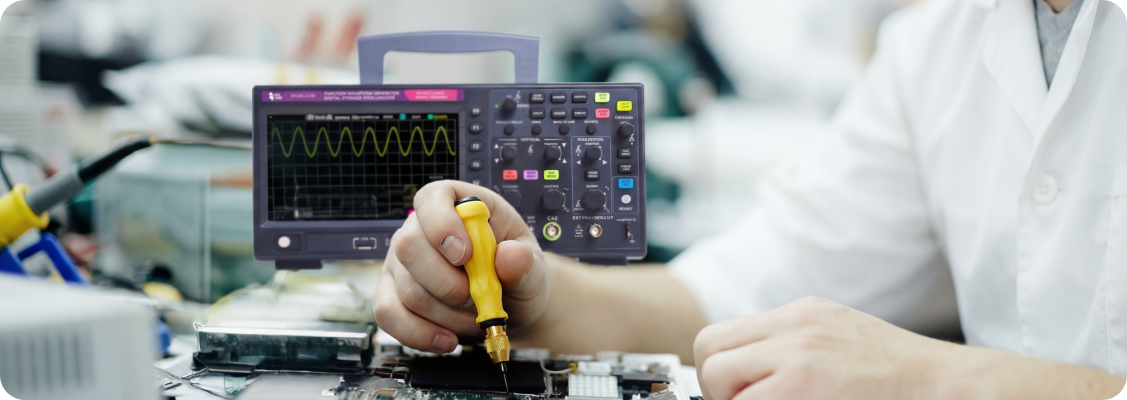

Signal analysis on an oscilloscope interpretation of electronic waveforms

Calibration and Maintenance

Regular calibration and clean probes are the basis of accurate measurements. Neglect leads to errors and equipment damage.

How does Spacetronik A3150 help avoid errors?

Spacetronik A3150 offers a high bandwidth of 150 MHz, automatic measurements, and intuitive operation, which significantly reduces errors and speeds up diagnostics.

Digital oscilloscope Spacetronik A3150 professional signal measurements

FAQ

How to choose the right oscilloscope?

When choosing an oscilloscope, pay attention primarily to its bandwidth (it should be at least 3–5 times greater than the frequency of the measured signal), sampling frequency, number of channels, and available measurement functions. Intuitive operation and the quality of measuring probes are also important. Properly selected equipment helps avoid the most common oscilloscope measurement errors and significantly facilitates diagnostics.

What does oscilloscope bandwidth mean?

Oscilloscope bandwidth determines the maximum signal frequency that the device can faithfully measure without significant amplitude distortions. Too low bandwidth leads to incorrect readings and loss of signal detail, which is a common cause of oscilloscope measurement errors. That is why it is so important to understand what oscilloscope bandwidth means and the measurement errors associated with it.

What should you pay attention to when buying an oscilloscope?

When buying an oscilloscope, the key factors are: bandwidth, sampling, memory, build quality, and availability of automatic functions. It is also worth paying attention to ergonomics and ease of configuration, which helps avoid time base errors in the oscilloscope and speeds up learning to work with the device.

What are typical oscilloscope measurement errors?

The most common errors include: incorrect probe and ground connection, lack of probe compensation, incorrect V/Div and T/Div settings, ignoring oscilloscope bandwidth, and incorrect waveform interpretation. All these problems affect oscilloscope diagnostics and may lead to incorrect conclusions.

How to read data from an oscilloscope correctly?

To read data from an oscilloscope correctly, sensitivity (V/Div), time base (T/Div), and trigger must be set properly. It is also crucial to relate measurements to the circuit schematic and expected values. Analysis without context is a common source of interpretation errors.

What time errors can occur in an oscilloscope?

The most common time base errors in an oscilloscope are too fast or too slow a time scale, which leads to loss of detail or difficulty in waveform analysis. Incorrect trigger setting may additionally cause an unstable signal image.

How to perform oscilloscope measurements safely?

Safe measurements with a digital oscilloscope require proper grounding, avoiding ground loops, and awareness of potentials in the tested circuit. Never connect the probe ground to points live with respect to earth – this may cause a short circuit or electric shock.

Why do mechanics avoid the oscilloscope?

Many mechanics avoid the oscilloscope because of its apparent complexity and lack of practical knowledge. In reality, however, basic skills allow you to master the device quickly, and its use significantly improves diagnostic effectiveness and eliminates the most common oscilloscope measurement errors.

Summary

Avoiding measurement errors is a combination of knowledge, practice, and the right equipment. A well-chosen oscilloscope significantly facilitates work and increases diagnostic accuracy.
