Yeelight Integration with Smart Home: LAN Control, Matter, and Home Assistant Demystified
Delays in smart home? Time for local control and Yeelight integration without the cloud
{author=1}Delays and failures of external servers are the biggest nightmares of a cloud-based smart home. The way out of this situation is local device control on the home network. In this guide, we discuss the integration of Yeelight devices using LAN Control and Matter protocols, eliminating cloud mediation in favor of lightning-fast response times.
The key to reliability is proper network configuration: reservation of a static IP address on the router and separating a band for IoT devices. Such a foundation helps avoid device disconnections, ensuring response time in milliseconds and full integration with Home Assistant, Google Home, and Apple HomeKit from DMTrade.pl.
From Wi-Fi and BLE Mesh to the Matter standard: The evolution of Yeelight communication protocols
The first Yeelight devices were based on classic Wi-Fi 2,4 GHz, which, with a larger number of light points, burdened the router. Progress came with the implementation of BLE Mesh technology, which relieved the network and created a stable mesh of connections, although it still required a dedicated gateway and a cloud connection.
The breakthrough was brought by the Matter standard – a universal IP protocol enabling direct communication on the LAN network and via the Thread protocol. The implementation of Matter eliminated delays and dependence on the cloud API, guaranteeing the continuity of lighting scenes even with a complete lack of Internet access.
Step by step: Implementing local LAN Control in Home Assistant
To activate local control, open the official Yeelight application (avoid Xiaomi Home, which limits developer options). In the settings of the selected device, switch the “LAN Control” slider (Local control) to the active position. This action will unlock TCP port 55443 for direct communication.
After enabling the function, Home Assistant will automatically detect the new device in the “Devices and services” section. Just click “Configure”. If auto-discovery does not work, add the integration manually by entering the previously assigned static IP address.
Watch out for network pitfalls: Band Steering and AP Isolation
The most common cause of problems with detecting devices is an active AP Isolation function (client isolation) or Band Steering on the router.
AP Isolation blocks direct communication between devices on the same LAN/WLAN network. To diagnose the problem, run the ping [device_IP_address] command in the console (CMD/Terminal). No response means this option must be disabled in the router.
Band Steering forces switching between the 2,4 GHz and 5 GHz bands. Yeelight devices operate only on 2,4 GHz, so it is recommended to separate the SSID names for both bands.
The Matter standard in practice: A new era of lighting with Yeelight D1 RGBIC strips
The Yeelight D1 RGBIC strip series with Matter support introduces the groundbreaking Multi-Admin function. It allows simultaneous control of the same device from Apple HomeKit, Google Home, and Home Assistant without complicated plugins and bridges.
Configuration consists of scanning the Matter QR code in the application of the selected ecosystem. Transmission on the Wi-Fi 2,4 GHz network is secured with local encryption keys, which guarantees immediate response time and failure-free operation.
Apple HomeKit, Google Home, and Alexa ecosystems – how to get the most out of the integration?
Standardly connecting Yeelight with voice assistants via Yeelight Cloud generates delays. The best results come from switching to local integration through the Matter standard or bridging using Home Assistant.
By integrating Yeelight with Google Home or Apple HomeKit via a local Matter controller or local HA plugins (e.g. HomeKit Bridge), you gain immediate command execution and full preservation of automation when there is no access to the Internet.
Advanced lighting scenarios: Use the full potential of Yeelight flagships
Local control makes it possible to create smooth and extensive scenes. Combining a Yeelight Arwen lamp, a Yeelight D1 RGBIC strip, and a Yeelight Prim desk lamp creates a synchronized environment for work and relaxation.

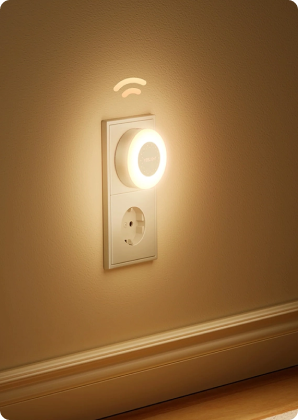

Using mmWave sensors and light intensity sensors (lux) in combination with local control allows automatic adjustment of color temperature and brightness with a response time below a dozen or so milliseconds.
Advanced network isolation: How to safely separate Yeelight into a separate VLAN?
Separating IoT devices into a separate VLAN subnet increases home network security. To maintain local control between subnets, configure the mDNS reflector service (e.g. Avahi) on the router and firewall rules allowing traffic from the main network to IoT.
Network equipment with VLAN support and Yeelight smart lighting can be found at dmtrade.pl.
FAQ
Summary
Switching to local Yeelight control (LAN Control, Matter) is a guarantee of lightning-fast response, reliability without Internet access, and a higher level of privacy in the smart home.
Proper router configuration in the 2,4 GHz band and reservation of static IPs allows you to enjoy fully autonomous lighting in Home Assistant, Apple HomeKit, and Google Home.
